- Type:
-
Drying Oven
- Application:
-
Medicine Processing, Chemicals Processing, Plastics Processing
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
AC380V
- Power:
-
16KW
- Dimension(L*W*H):
-
W900mm*D700mm*H600mm
- Key Selling Points:
-
Multifunctional
- Warranty:
-
1 Year
- Weight (KG):
-
0
- Applicable Industries:
-
Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company
- Showroom Location:
-
None
- Marketing Type:
-
Ordinary Product
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Other
- Heating Method:
-
Electric Heating
- Material:
-
SUS304, SUS304L, SUS316, SUS316L, Other
- Product name:
-
industrial precision hot air drying oven
- Temperature range:
-
RT~200C/300C/400C/500C
- After-sales Service Provided:
-
Video Technical Support
- Keywords:
-
Dryer Drying Machine
- Function:
-
High Efficiency Drying
- Heating source:
-
Electricity
- Feature:
-
High Efficiency Low Cost
- Advantage:
-
Easy Operation High Efficiency
- Dryig process:
-
Indirect Heating Batch Dryer
- for:
-
precision industrial drying oven for plastic touch screen
- Supply Ability
- 80 Set/Sets per Month precision industrial drying oven for plastic touch screen
- Packaging Details
precision industrial drying oven for plastic touch screen
Inner package: soft film with foam
Outer package: standard export wooden Box
Strong package for loading, uploading and long-distance shipment
- Port
Shenzhen/Shanghai/Ningbo port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 3 >3 Lead time (days) 30 To be negotiated

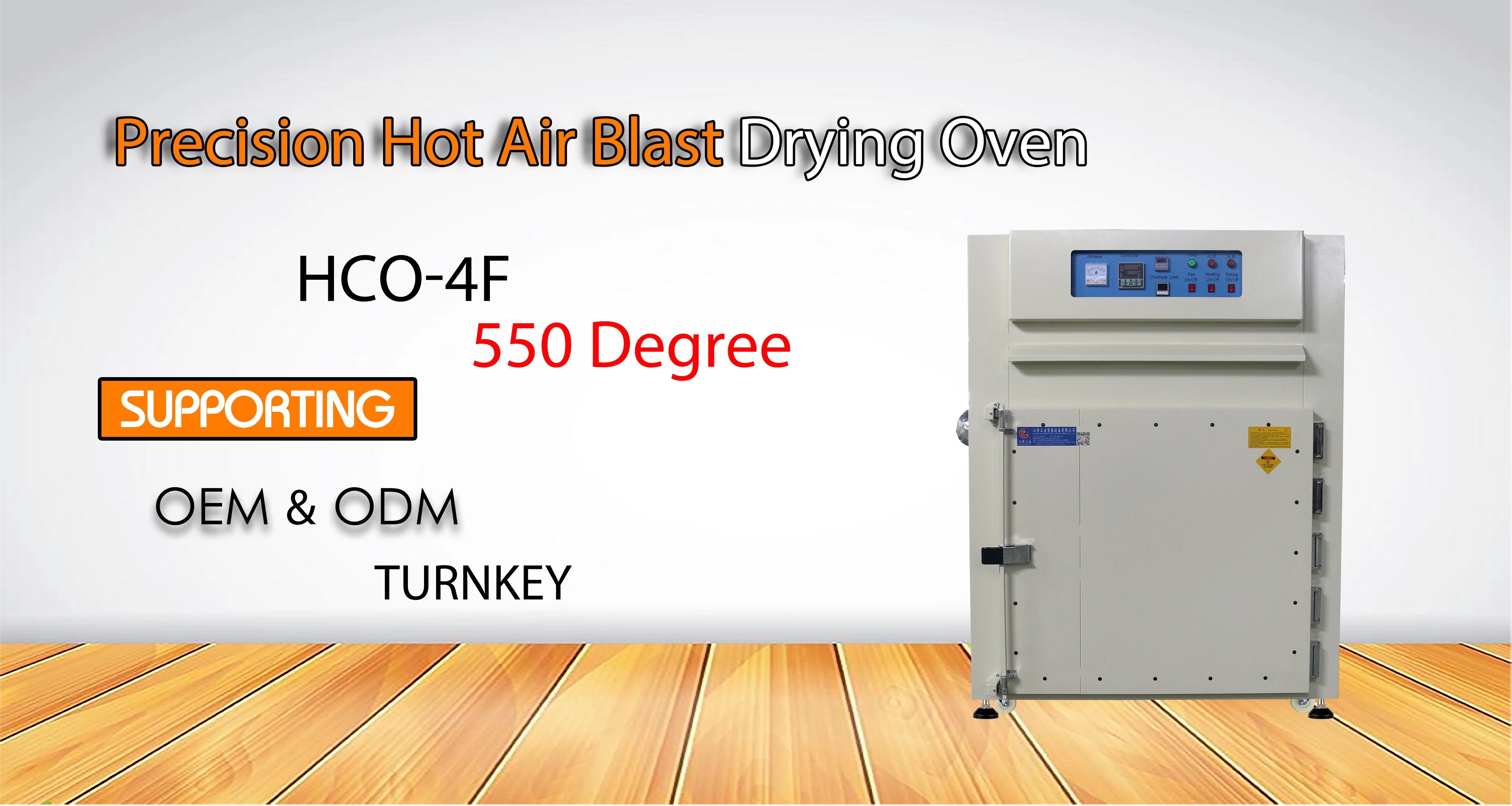

| Product Type | industrial precision forced hot air drying oven |
| Model No. | HSCO-4F |
| Power | AC380V 3φ 50/60HZ about 16KW |
| Inner Size | W 900X D700 X H600mm |
| Outer Size | W1700 X D1200 XH 1900mm, for reference |
| Inner Material | SUS430# Stainless steel sheet, shiny surface |
| Outer Material | SS41# cold-rolled sheet, baking after anti-static treatment |
| Seal | High temperature resistance silicon sealing strip |
| Temp. Range | Room ~ 400 degree, normally used 350 degree |
| Heating Rising Time | about 30 mins from Room to 350 degree ( empty testing) |
| Temp. Precision | +/-2% degree |
| Temp. Fluctuation | +/-1 degree |
| Timing Range | 1~9999min, digital display and setting |
| Air Supply | Force Hot Air Supply, special wind pathway design |
| Controller | XZ-960 controller, SSR output, Digital Setting, Temperature sensor, LED digital display and setting |
| Safety Device | All the components do meet international safety standards. |
| Remark | All above information can be customized as per the clients’ demand. |
Dongguan XINZHOU Industrial Equipment Co.,Ltd was founded in 2005 in Changan town, Dongguan city. Own five departments respectively, Incoming quality control department, R&D department, production department, product quality control department, and after-sales service department. It has successfully achieved ISO9001 quality management system certificate and more than 10 certificate of utility model patent.
Hubei XINHAI Industrial Intelligent Equipment Co.,Ltd was founded in 2018 in Xiangyang city, Hubei province, with 10000CM2 production area, which was completely invested by XINZHOU. It has more complete production system. including R&D, incoming quality control, sheet metal processing, accessory processing, coating, Electrical equipment assembly, testing, quality control. By 2020, it has set up R&D center with Hubei University of Arts and Science. In 2021, XINHAI has passed the High & New Technology Enterprise certification, and got the certificate of AAA Credit Enterprise in China.
To date, we have been exporting product to a wide range of countries and regions, like the USA, Japan, Germany, France, Italy, South Korea, Thailand, Taiwan, etc. We have established a long-term business cooperation with Gree, Midea, HuaWei, Panasonic,Toyota, Pioneer, OMRON, Molex, Delco, Antolin, and many other well-known brand.
Dongguan Xinzhou and Hubei Xinhai both also have passed the ISO9001 quality and managerment certification. And Dongguan Xinzhou has more than 10+ patents, the same to Hubei Xinhai.
In 2021, Hubei Xinhai has got the “High & New Technogical Enterprise” certificate.
Our factory has the whole production line for drying machine, from Laser processing, Metal cutting,punching, bending, machining, welding, baking varnish, Finished products assembly and packing. Each process with their own QC team.
Also we have a complete set of production system which can meet all your customized demand.

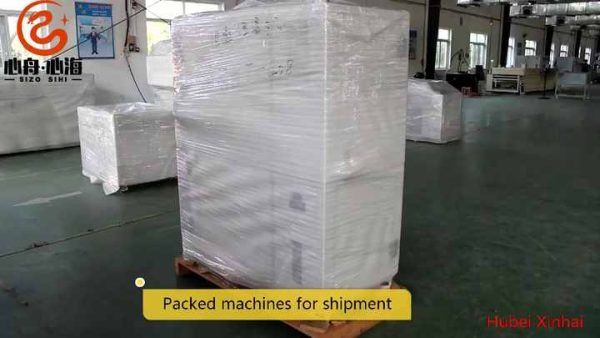

The products are packed well before shippment.
All the machines are packed as below:
- Inner package: soft film with foam
- Outer package: standard export plywood carton
- Strong package for loading, uploading and long-distance shipment
