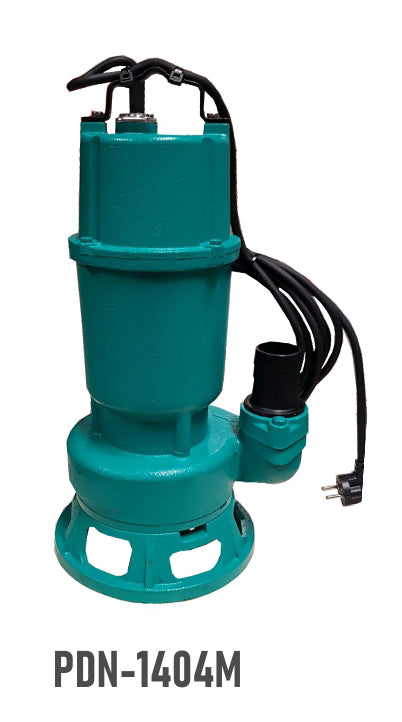

![Wilo Submersible Sewage Pump [Dirty Water] (PDN Series)](https://allschoolabs.com/wp-content/uploads/2023/11/3-6_c944e434-d126-46f3-b57e-a7623d04b3b0.jpg)
Submersible Sewage Pump
PDN Series
Features
- Stainless steel shaft as standard
- Leak-proof by double mechanical seal and oil seal
- Motor protection by T.P.
- Excellent sludge transfer by non clog type
- Safety design with built in OLP (overload protector)
- Various materials are available
Applications
- Drainage for waste water at factories and waste water treatment plant
- Delivery of sewage at sewage treatment plant, human waste treatment
- Drainage for buildings
- Treatment utility drainage
Standard Materials
- Casing: Gray Cast Iron
- Impeller: Gray Cast Iron
- Shaft: Stainless Steel
Specifications
| Model | PDN-1404M | PDN-2200T | PDN-3700T | |
| Power Source PH x V | 1 x 220 | 3 x 220 | 3 x 220 | |
| Output kw (HP) | 0.95 (1-1/4″) | 2.2 (3) | 3.7 (5) | |
| RPM | 3450 | 3450 | 1800 | |
| Discharge Dia. (mm) | 50 | 65 | 80 | |
|
Head (m)
|
Max | 19 | 23.8 | 21.5 |
| BEP | 10 | 13.5 | 12 | |
|
Flow Rate (gpm)
|
Max | 105 | 238 | 390 |
| BEP | 67 | 125 | 240 | |
| Rated Current (A) | 8 | 8.1 | 4.1 | |
|
Bearing
|
Upper | 6202ZZ | 6203ZZ | 6305ZZ |
| Lower | 6203ZZ | 6306ZZ | 6308ZZ | |
| Price | 23,440.00 | 51,600.00 | 82,800.00 | |
3 Months Service Warranty
